To solve implicit functions

A functon which is not defined in a form of y=f(x) but written as f(x)+g(y)=0 cannot be defined in gnuplot. To draw such an implcit function, we have to use a parametric representation, or the function is once defined as a 3-D surface, and find an intersection curve with z=0 plane.

If the function can be defined by using parameters, it is easy to make a figure. For example, an equation for circle, x*x+y*y=r*r, is re-defined by x=r*sin(t) and y=r*cos(t). In gnuplot:

gnuplot> set parametric

        dummy variable is t for curves, u/v for surfaces
gnuplot> set size square
gnuplot> r=1
gnuplot> plot r*sin(t),r*cos(t)

When the function is so complicated, and use of parameter is difficult, we define the function as a 3-D surface. The next example is for x^3-2xy + y^3=0 .

gnuplot> f(x,y)= x**3 - 2*x*y + y**3

An intersection of f(x,y) and z=0 is the solution. To set the z=0 plane at the bottom of 3-D plot, we use set ticslevel 0 .

gnuplot> set xrange [-2:2]
gnuplot> set yrange [-2:2]
gnuplot> set zrange [0:5]
gnuplot> set ticslevel 0
gnuplot> set view 40,340
gnuplot> set isosample 100,100
gnuplot> splot f(x,y)
implicit1

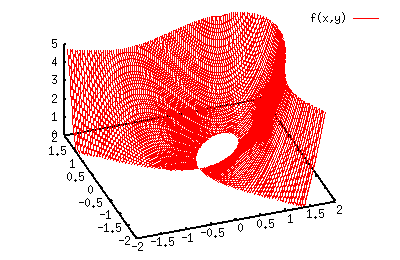

The curve shown at the bottom is the solution of f(x,y)=0. The contour lines give us the values of this curve, which are written on a file.

gnuplot> set xrange [-2:2]
gnuplot> set yrange [-2:2]
gnuplot> set zrange [*:*]
gnuplot> set cont base
gnuplot> set cntrparam levels discrete 0,0
gnuplot> unset surface
gnuplot> set surface
gnuplot> set term table
gnuplot> set output "cont.dat"
gnuplot> splot f(x,y)

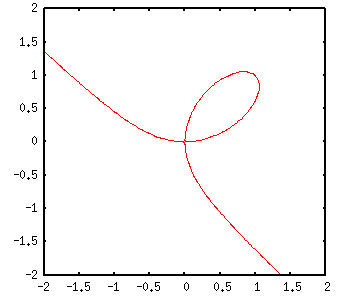

Then, the data on the file are plotted, in a usual manner.

gnuplot> set xrange [-2:2]
gnuplot> set yrange [-2:2]
gnuplot> set size square
gnuplot> plot "cont.dat" w l
implicit2

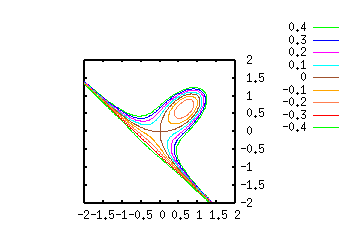

The following method does not use a temporary file. The contour lines are shown at -0.4 with an increment of 0.1, and each line corresponds to a solution of x^3-2xy + y^3=const.

gnuplot> set xrange [-2:2]
gnuplot> set yrange [-2:2]
gnuplot> set view 0,0
gnuplot> set isosample 100,100
gnuplot> set size square
gnuplot> set cont base
gnuplot> set cntrparam levels incre -0.4,0.1,0.4
gnuplot> unset surface
gnuplot> splot f(x,y)
implicit3
